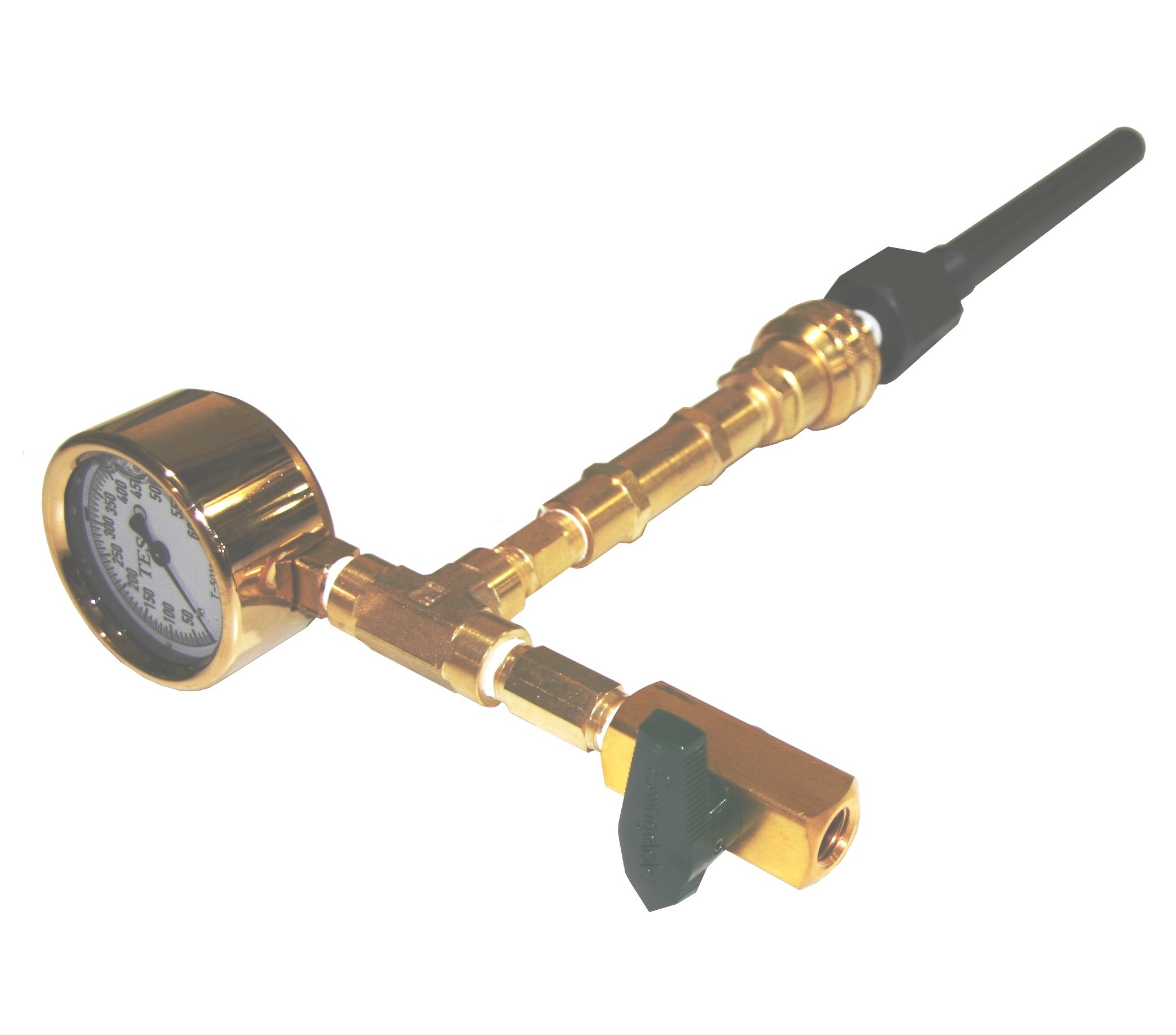

Individual EMD Compression Tester
Part Number:
T50213
Product Description
Compression Testers
There are presently over 30000 of these testers in service around the world. Through their use, customers can very quickly determine faulty cylinders. They have virtually eliminated earlier blow-by test procedures, and a cutout of the instructions are included. The new configuration combines the Tee and Nipple into one component (T50332) to reduce threaded connections.
There are presently over 30000 of these testers in service around the world. Through their use, customers can very quickly determine faulty cylinders. They have virtually eliminated earlier blow-by test procedures, and a cutout of the instructions are included. The new configuration combines the Tee and Nipple into one component (T50332) to reduce threaded connections.

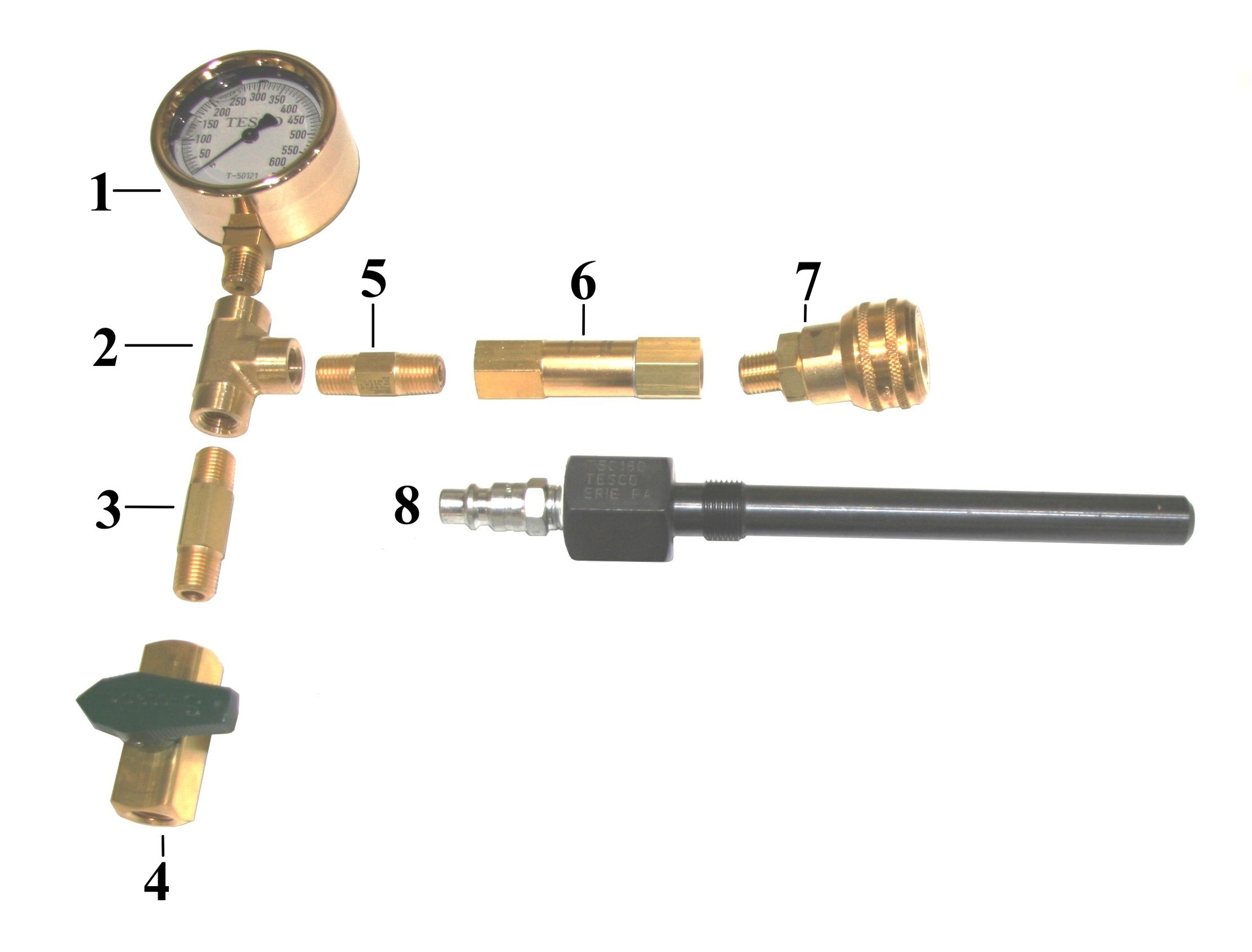

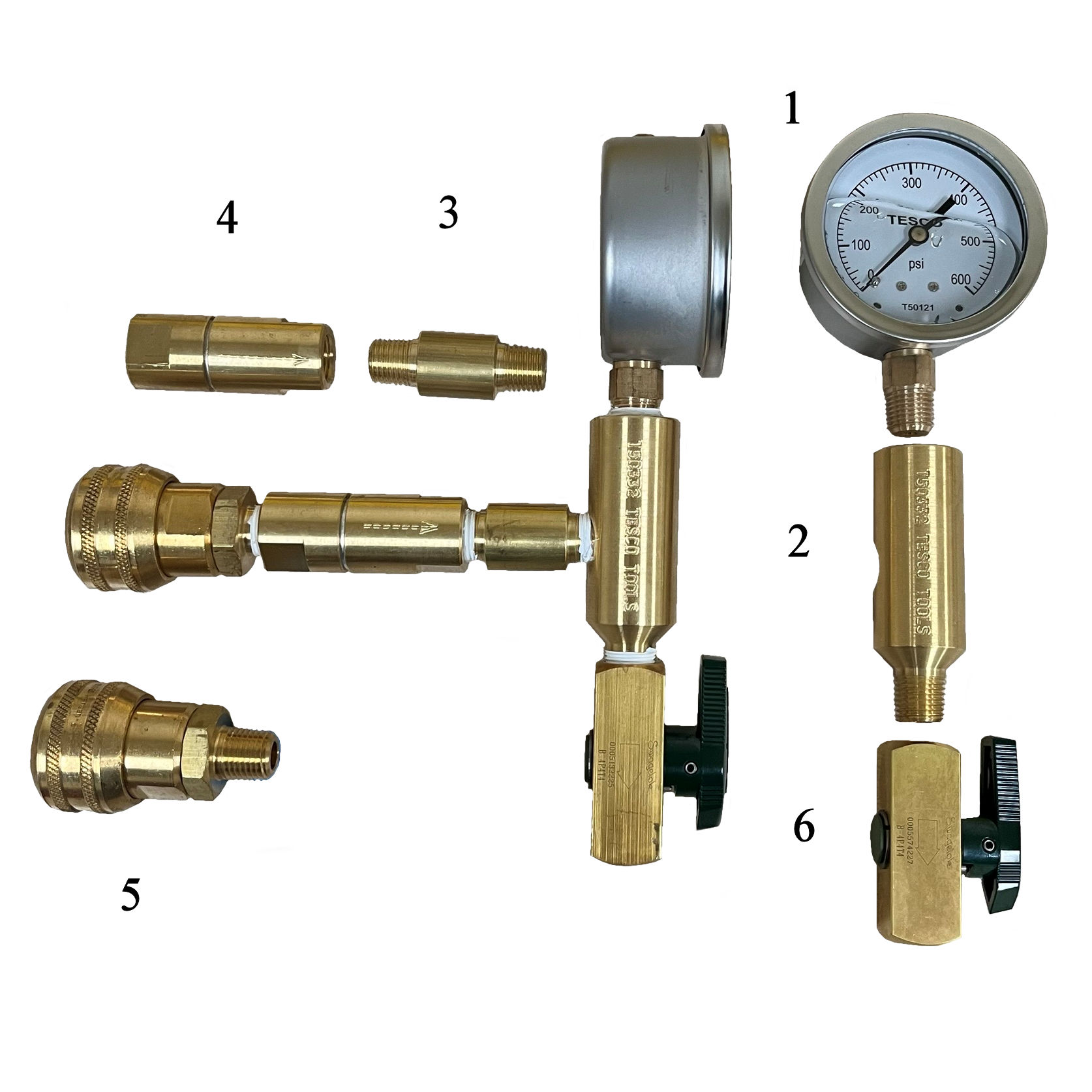

| 1 | T50121 | Gage |
| 2 |
T50332 |
Tee |
| 3 | T50132 | Check Valve |
| 4 | T50193 | Filter |
| 5 | T50171 | Quick Disconnect Socket |
| 6 |
T50142 |
Release Valve |
|

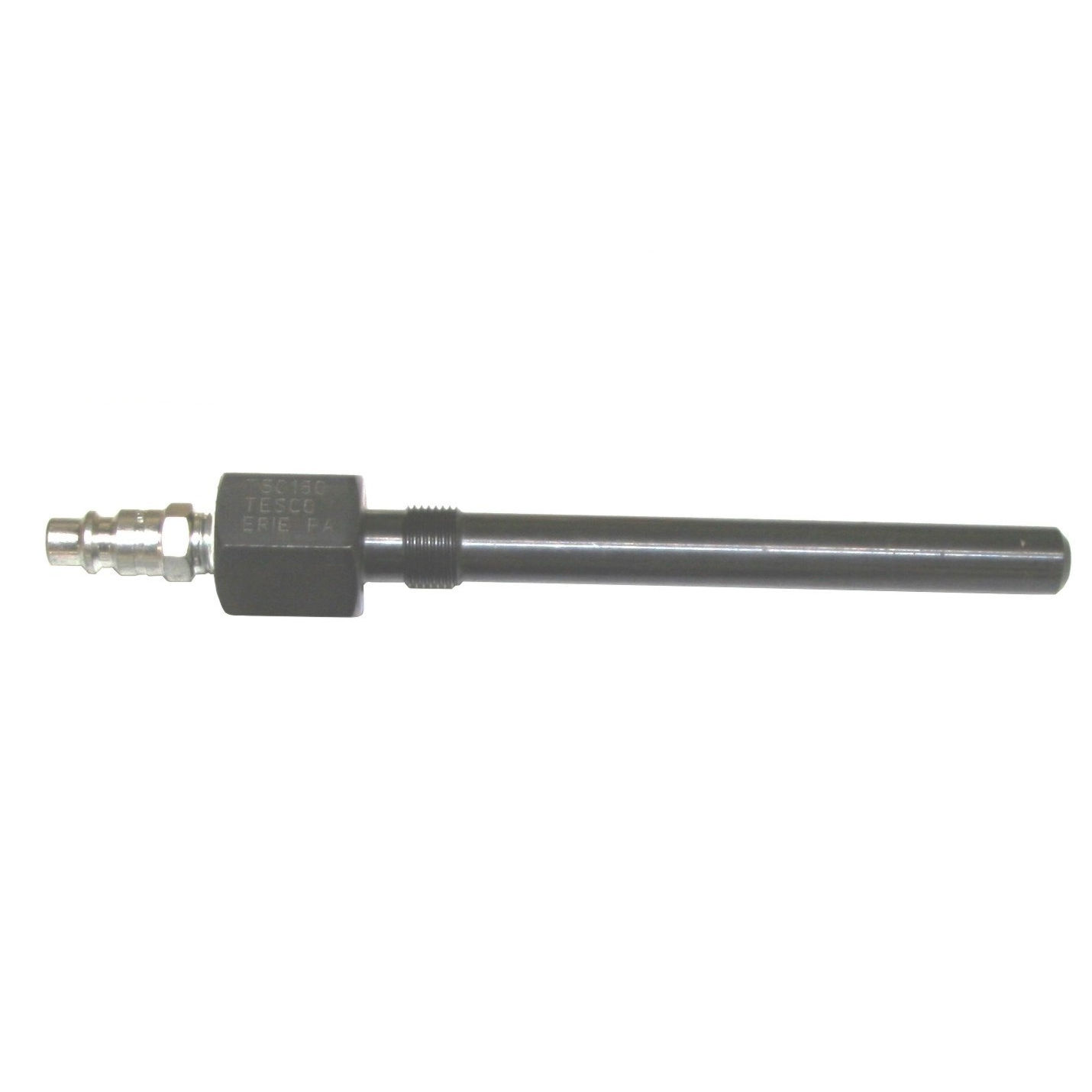

T50160 |
EMD Compression Tester Adapter |
