Universal Engine Lifter
Part Number:
T85205
Product Description

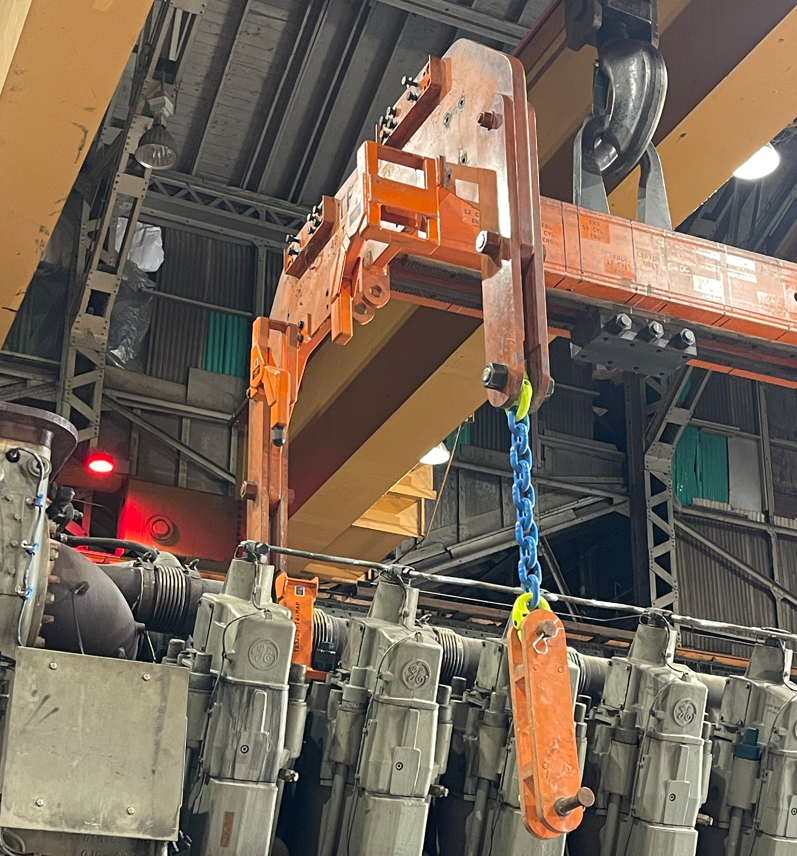

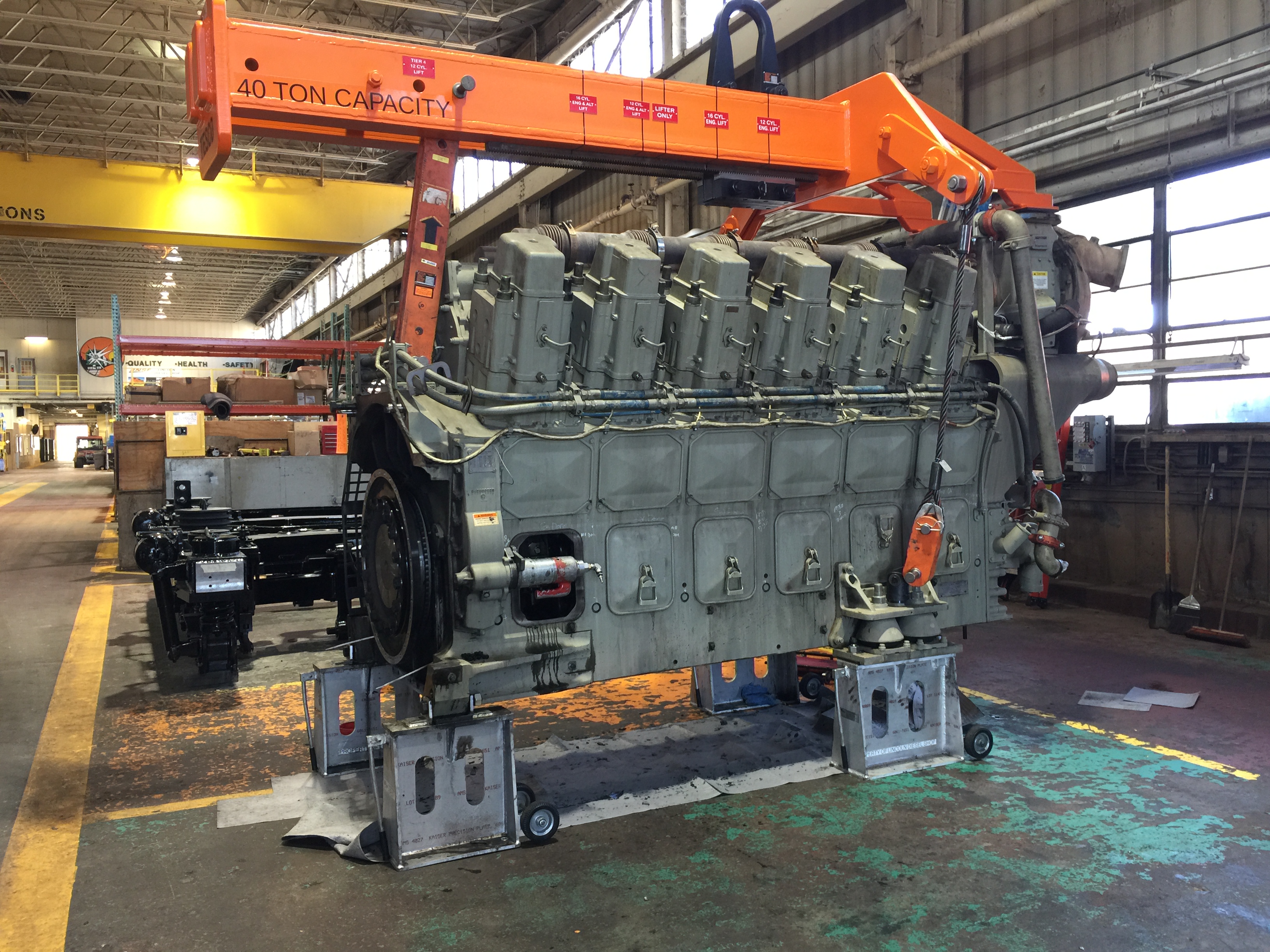

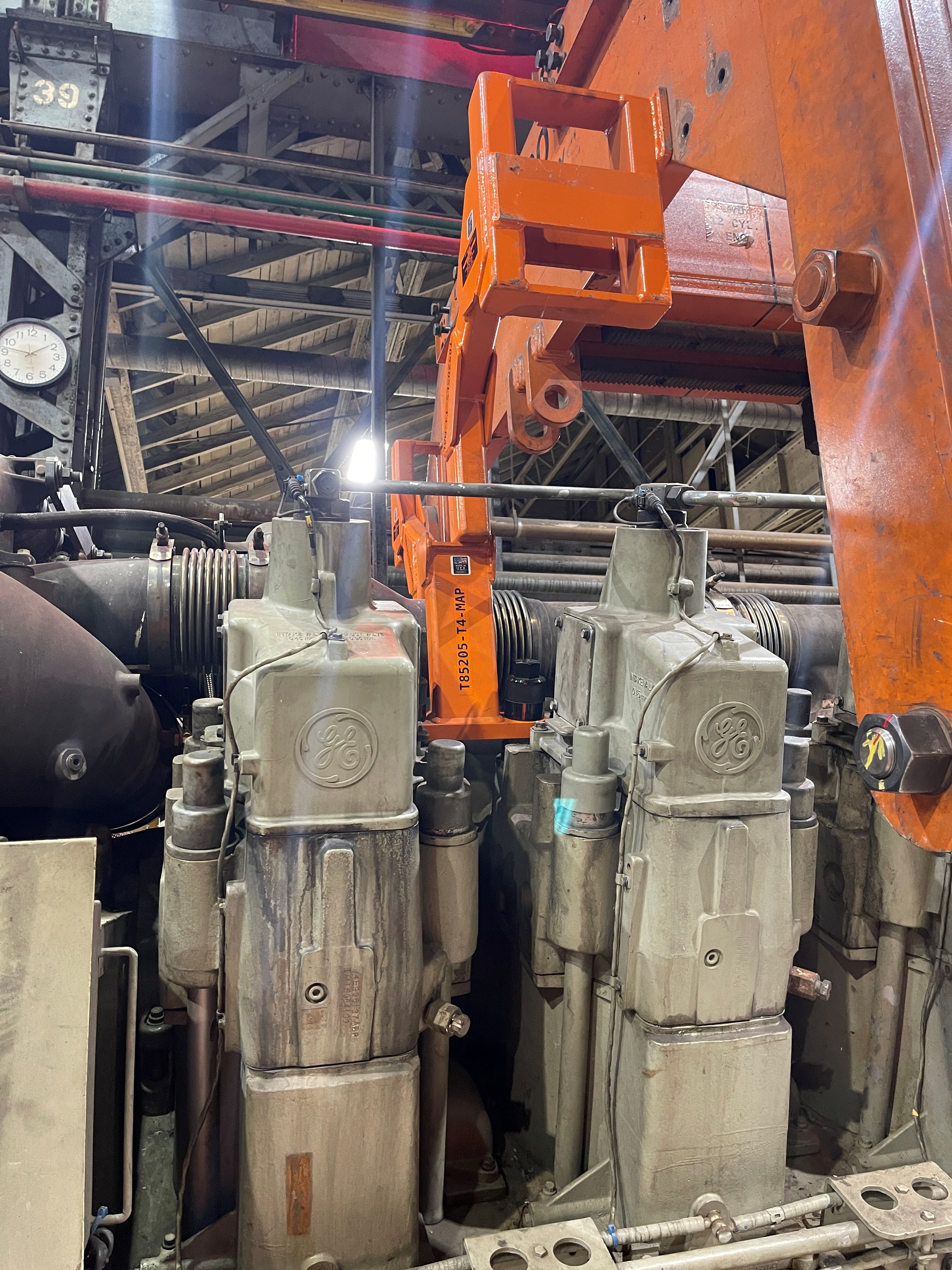

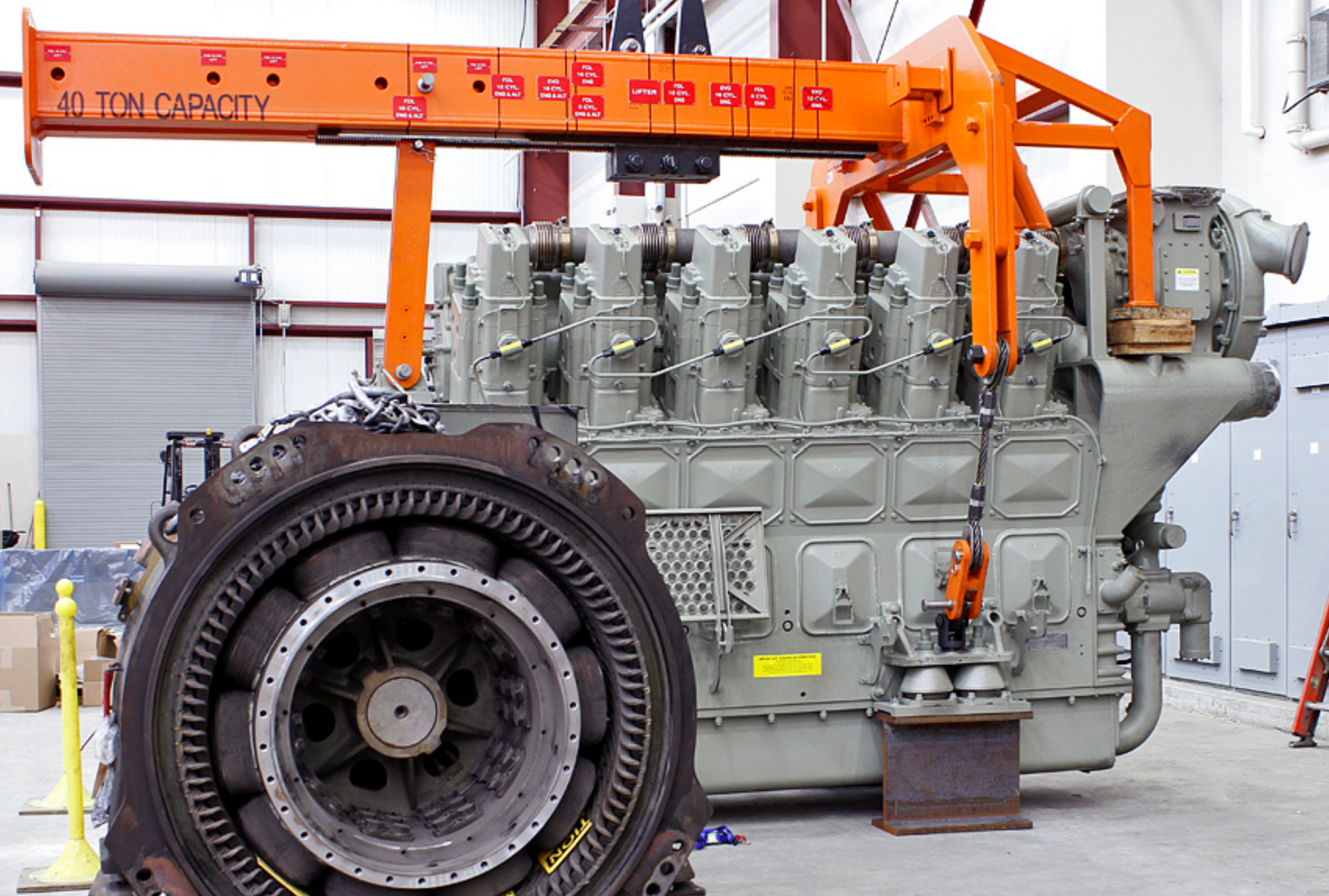

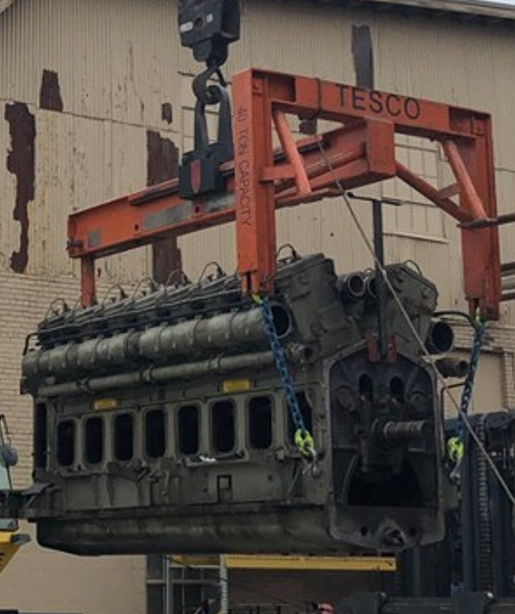

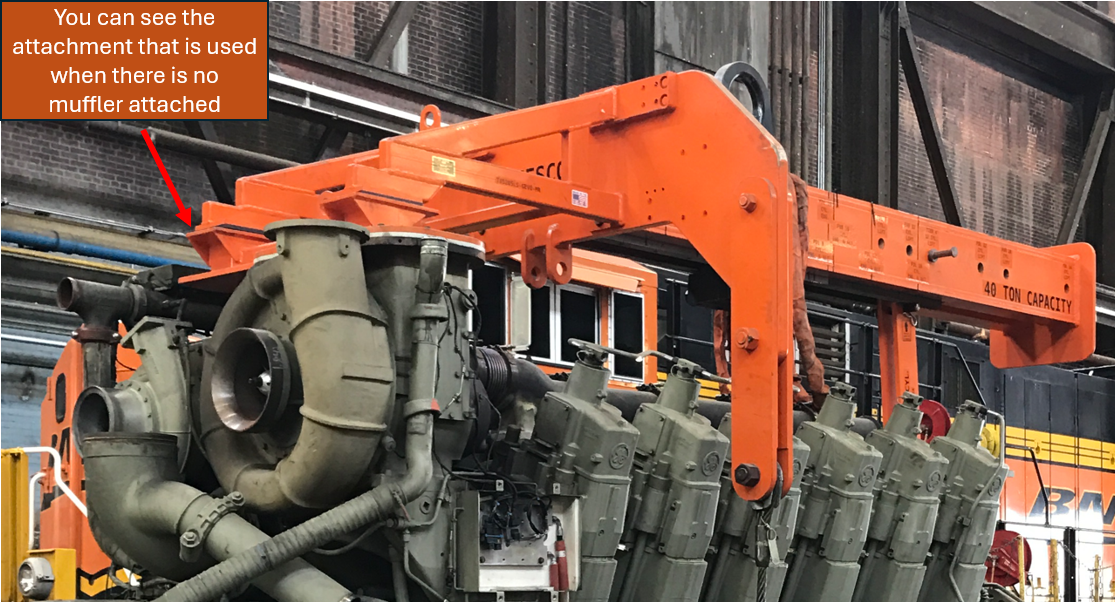

The T85205 is a universal lifting platform that will accommodate EMD Engines, GE FDL, Evolution, and Tier 4 Engines with and without the muffler attached. The frame is universal and all that is required for quotation/purchase is to let us know what engines you plan on lifting and in what configuration (muffler / no muffler for EVO and T4). The .pdf file shows the individual engine components broken into part numbers and placement on the universal frame.
The number of different engines and configurations grew to a point where lifters became custom to individual locations and the part numbers and descriptions were confusing. This platform simplifies the entire process and allows future additions without sending the unit back to TESCO for modification. For example if you have the T85205 with the components for the EVO Engine and would like to start lifting T4 Engines you would simply order the individual components on the T4 callout page and install onto your existing frame.
