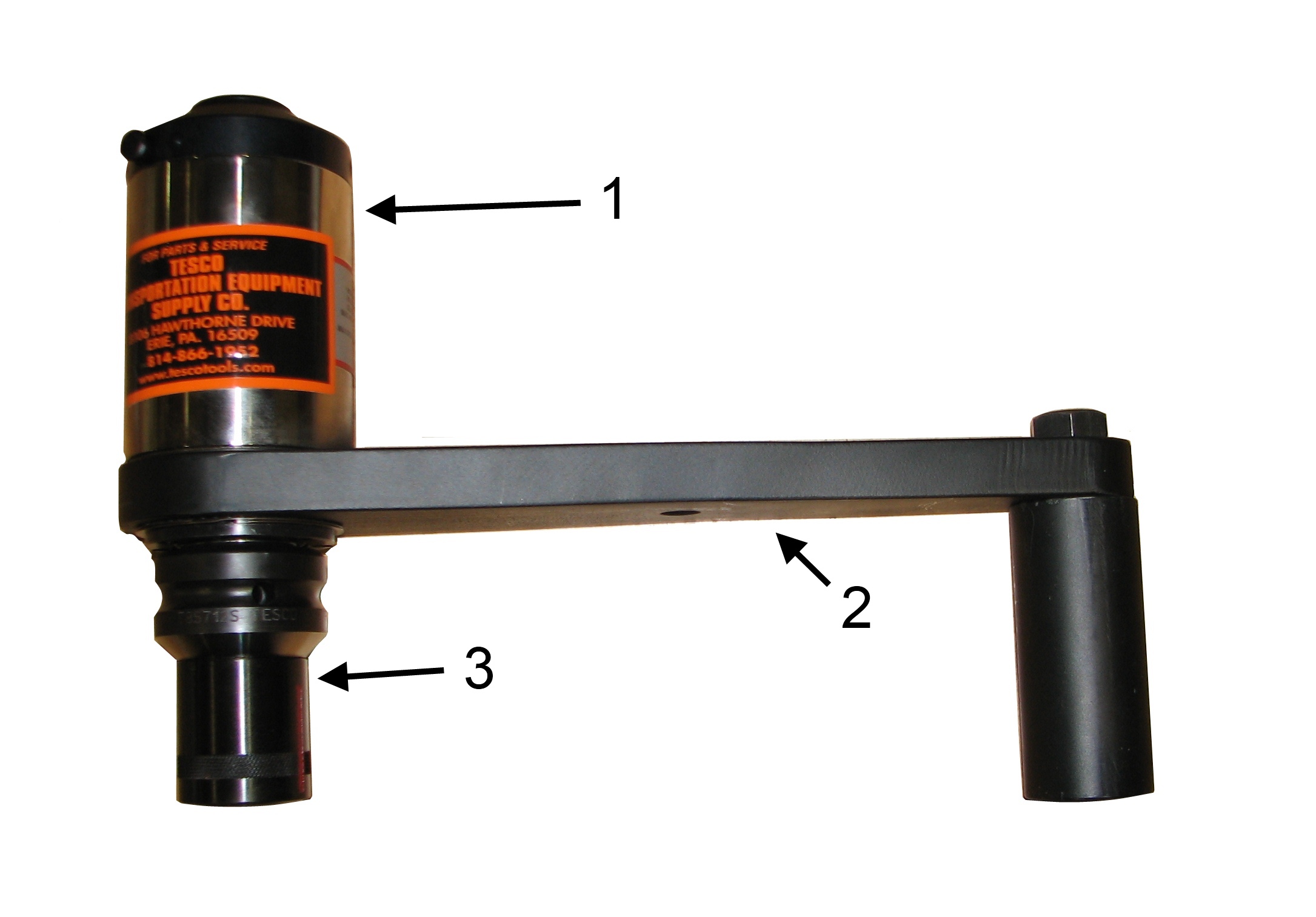

EVO Connecting Rod Torque Kit

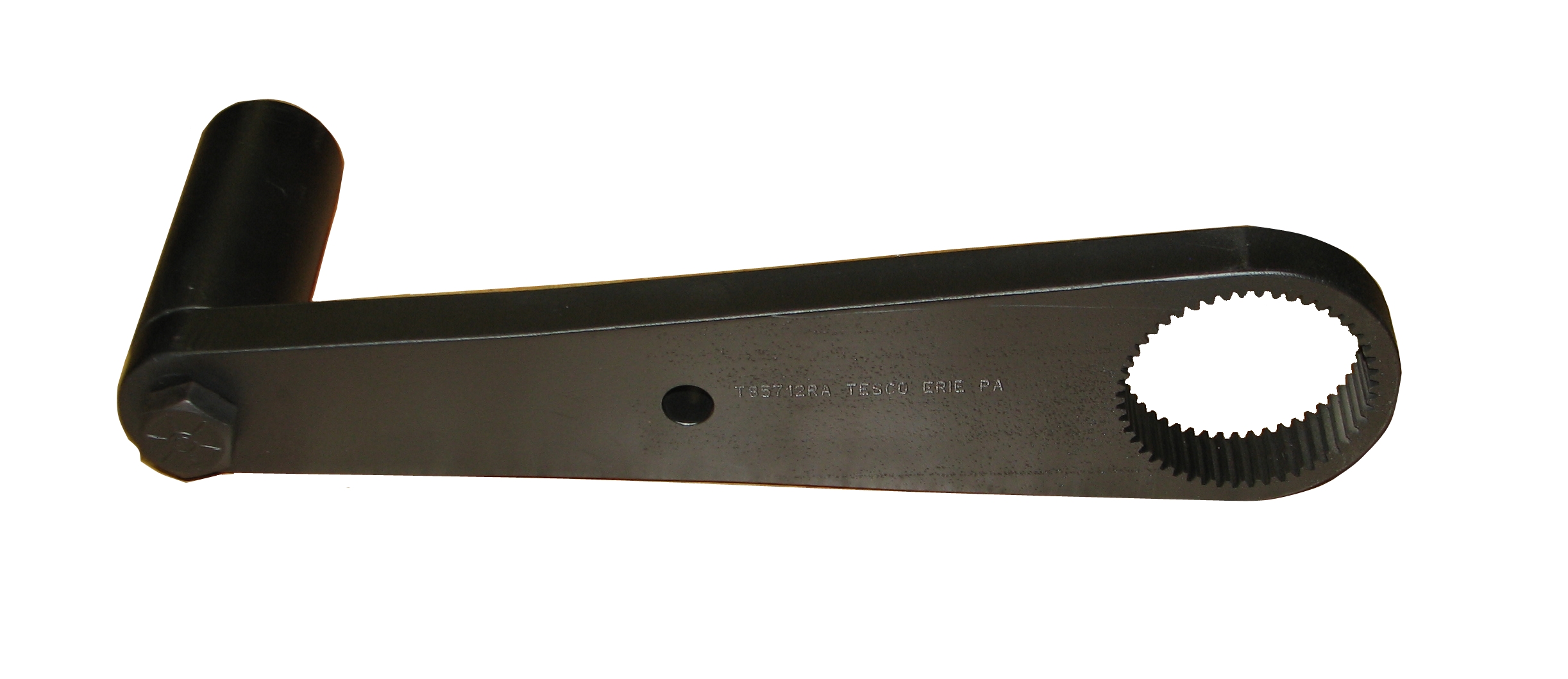

This kit contains a 25:1 verifier with anti-wrap up feature, a custom reaction arm and a 24MM Sweep Socket (1" Square Drive) to apply the pre-torque and angle of turn per OEM instructions to Evolution Connecting Rod Bolts. After the pre-torque is applied the machinist can mark a position on the conn rod to to line up with the green line on the socket and then apply torque until the hash mark lines up with the red line on the socket. The assembly is held onto the connecting rod bolts and just a turn or two on the verifier drive creates enough force on the socket and reaction arm to hold the package in place.

 We also offer a T85712S-3/4 3/4" Square Drive Socket, but this version will not work with the Verifier.
