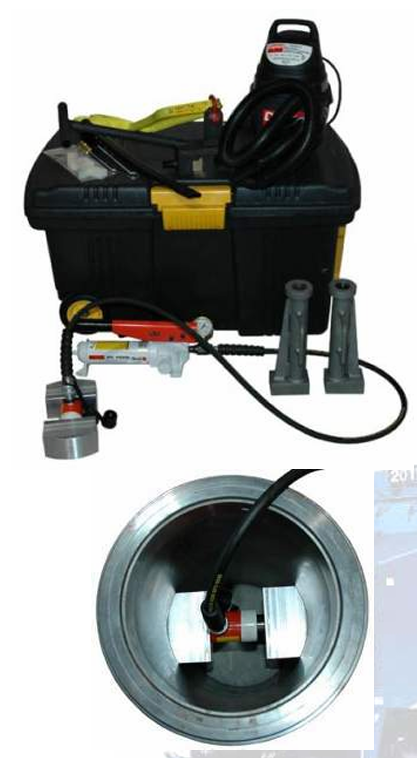

EVO Liner Removal and Lifting Kit
Part Number:
T85810K
Product Description

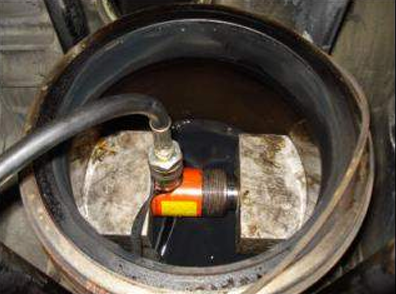

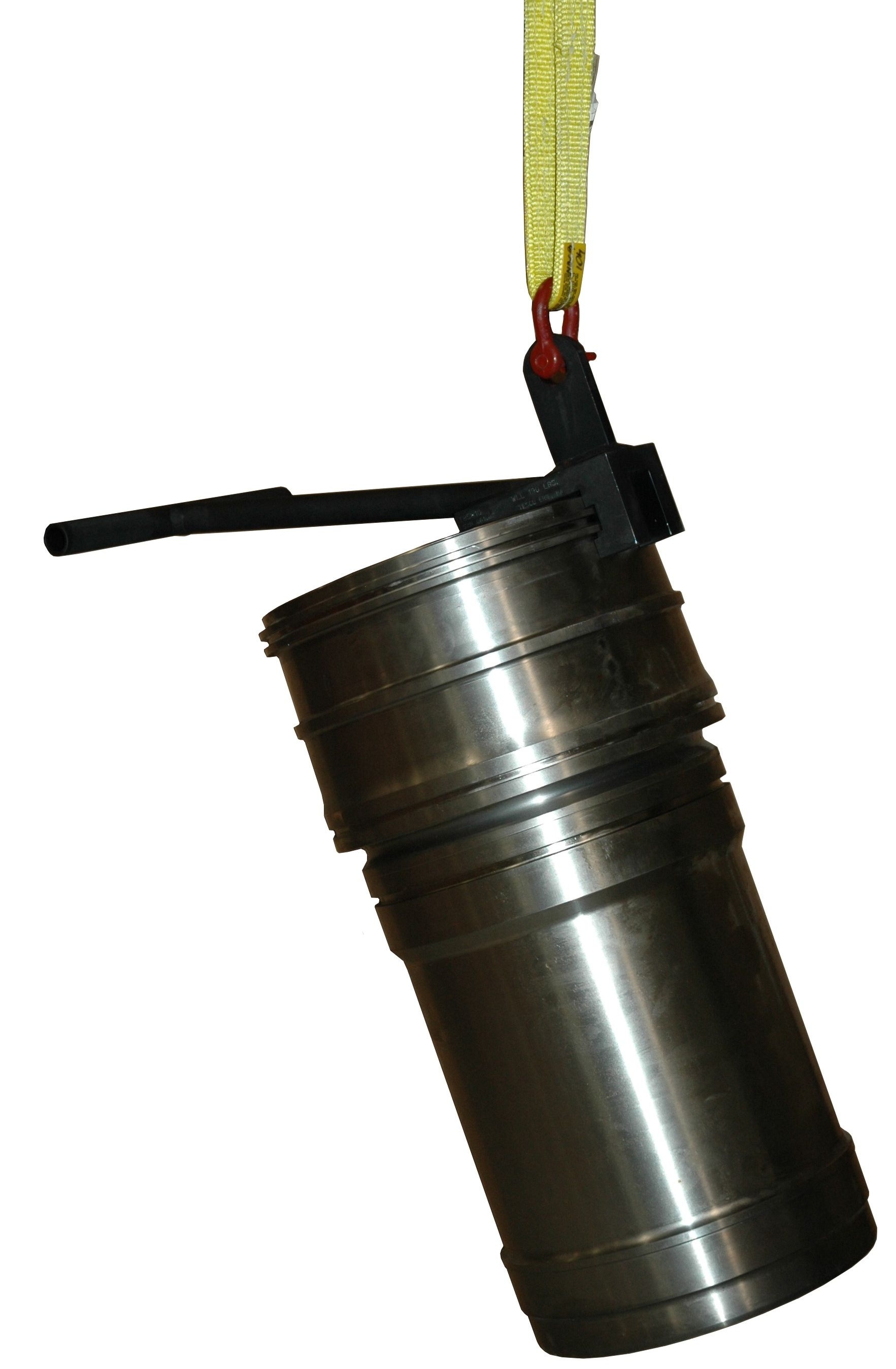

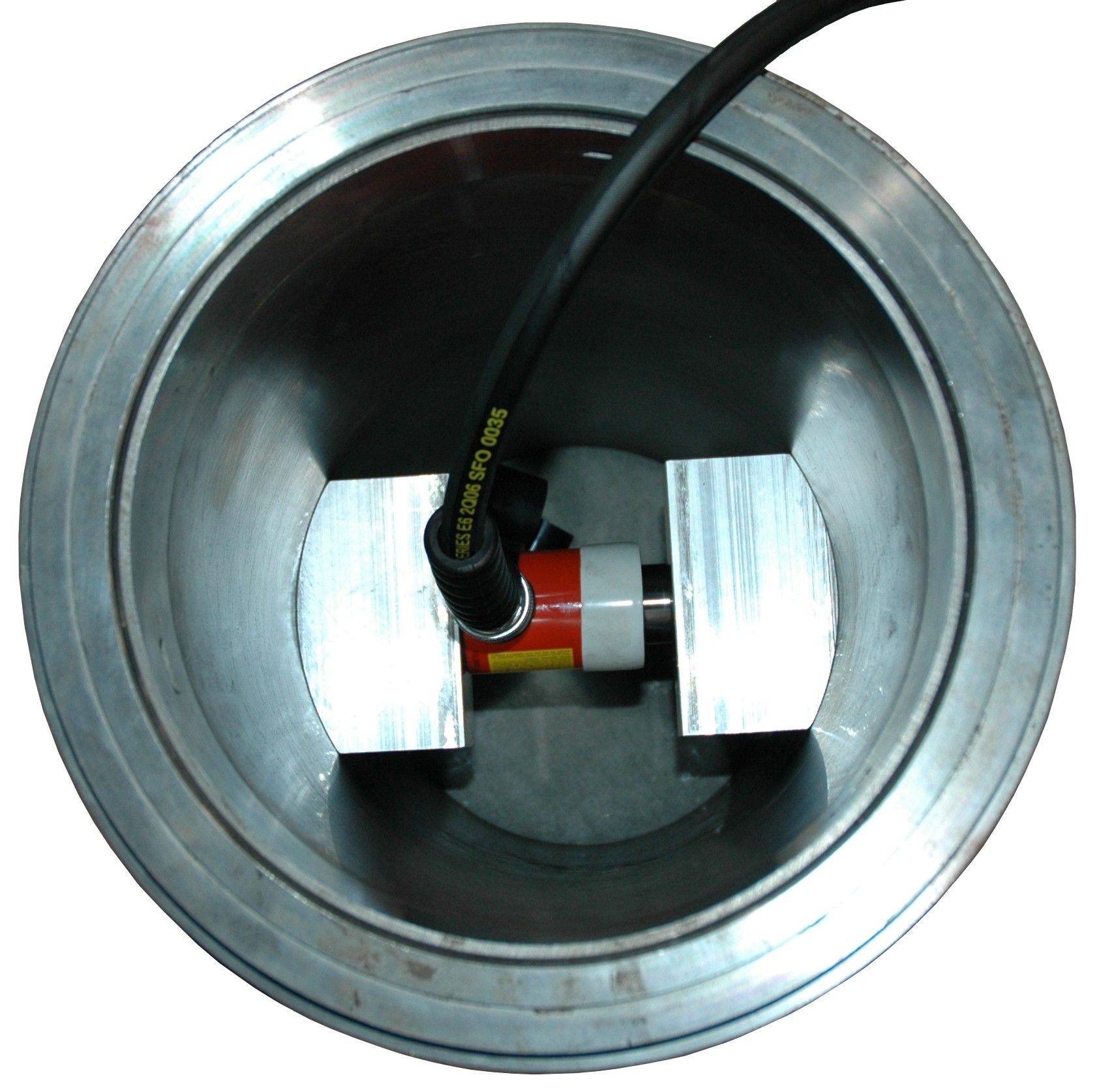

This kit contains everything needed to remove and install the liner into the strongback. The Aluminum blocks are placed into the liner bore and hydraulically expanded to brace against the piston as the engine is barred. As the piston comes up the liner is pushed out of its seat. The o-ring can then be removed and installed. The T85811 Liner Lifter is then installed onto the liner and lifted out of the strongback. Wire brushes and a small vacuum cleaner are included to aid with cleaning.

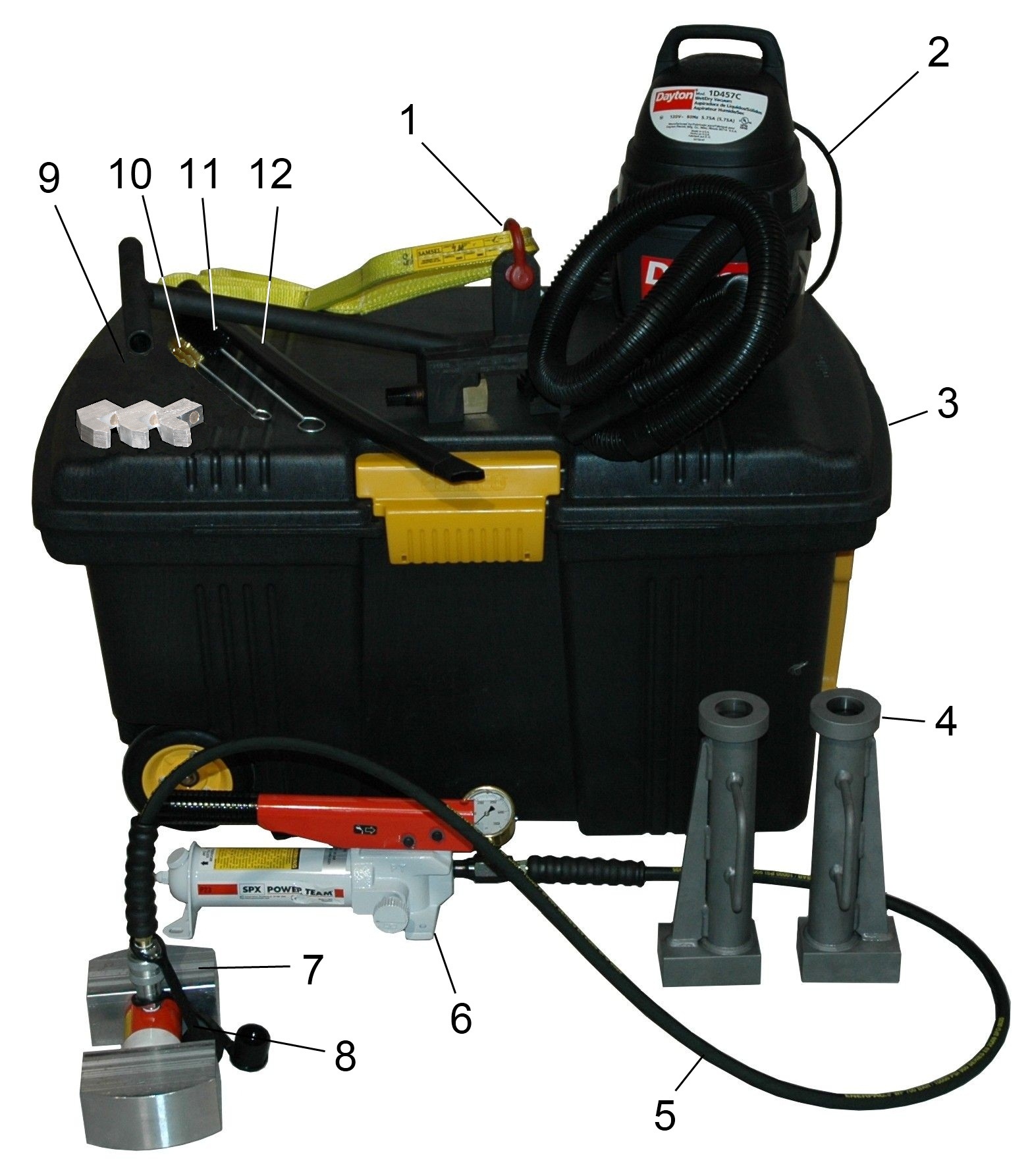

| 1 | T85811 | GEVO Liner Lifter |
| 2 | Vacuum Cleaner | |
| 3 | Kit Carrying Case | |
| 4 | T85840 | Liner Depressor |
| 5 | T85810K-H10 | 10' Hydraulic Hose |
| 6 | T85810P | Hydraulic Pump |
| 7 | T85810AB | Aluminum Spreader Blocks |
| 8 | T85810R | Hydraulic Ram |
| 9 | T85810-A2 | Liner Retainer Blocks (3) |
| 10 | T85810K-P26 | Brass Brush |
| 11 | T85810K-P25 | Soft Brush |
| 12 | Vacuum Crevice Tool |
