EVO Equipment Blower Lifting Attachment

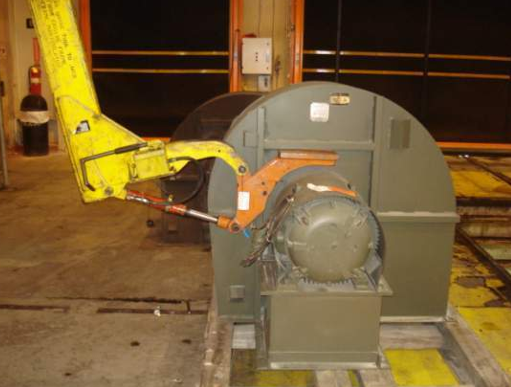

This appliance is used to lift the equipment blowers out of GE locomotive cabs. The safety pin is installed through the appliance and locked against the central blower rib. The load is leveled with the "C" Frame Ram. The T63201 is reversable and can be used to address the blower from either side. This attachment can be used with both the T57170 standard C-Frame as well as the T63200SAA extended reach C-Frame.

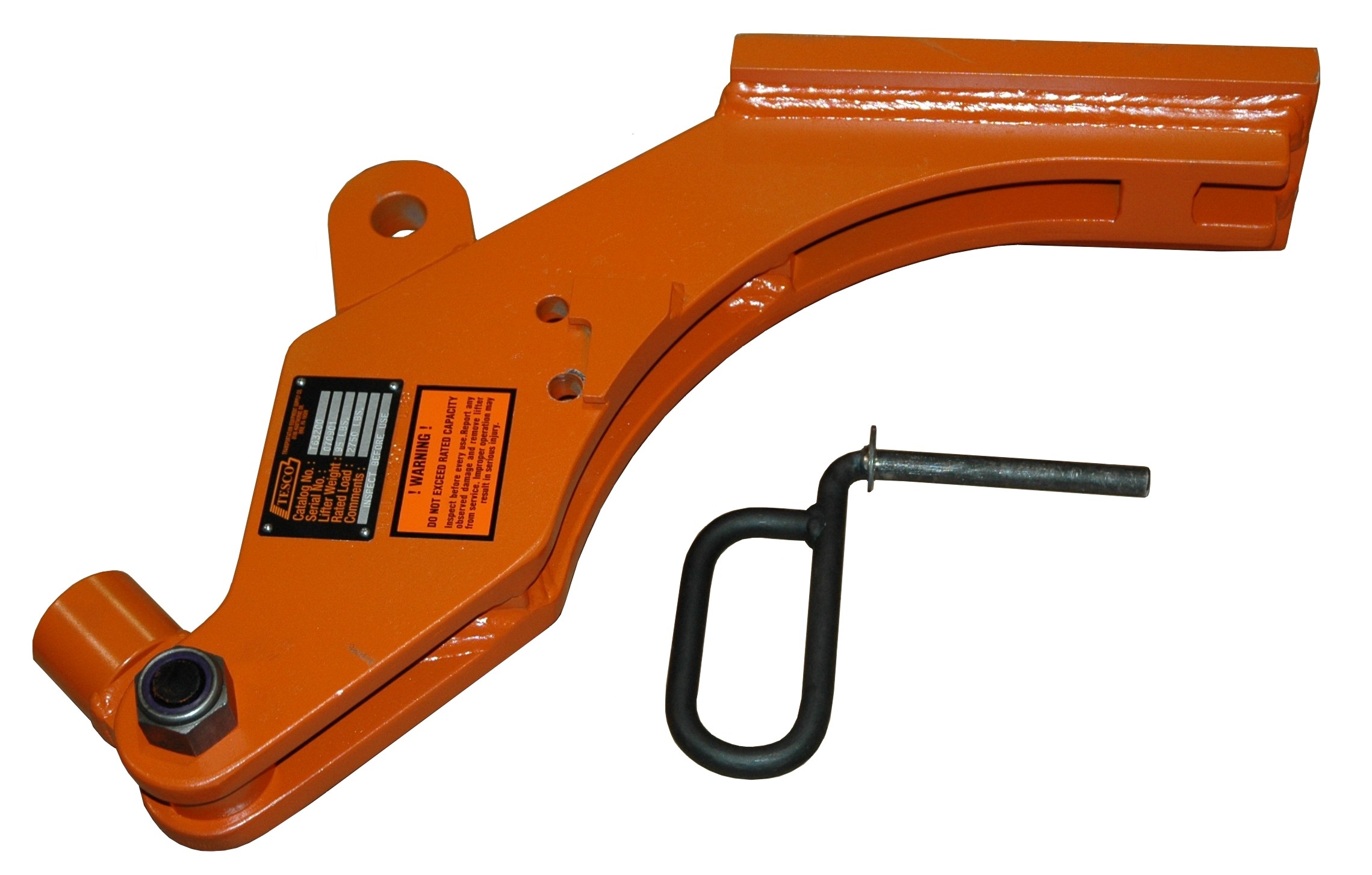

There are two different style pins for this lifter. #1 in the picture is the T63200P Locking Pin for the original T63200 Blower Appliance. #2 is the T63201-7 Locking Pin for the current T63201 Blower Appliance.

Some of the newer blower motors do not have the angled ribs so the standard T63201 will not fit without an adapter. These blower motors require a T63202P Plate to bolt onto the motor, and the T63202A Adapter which is installed onto the top of the standard T63201 Appliance. Pictures and presentation are below.
