EVO Main Bearing Cap and Tensioner Cylinder Lifter Kit
Part Number:
T85051
Product Description

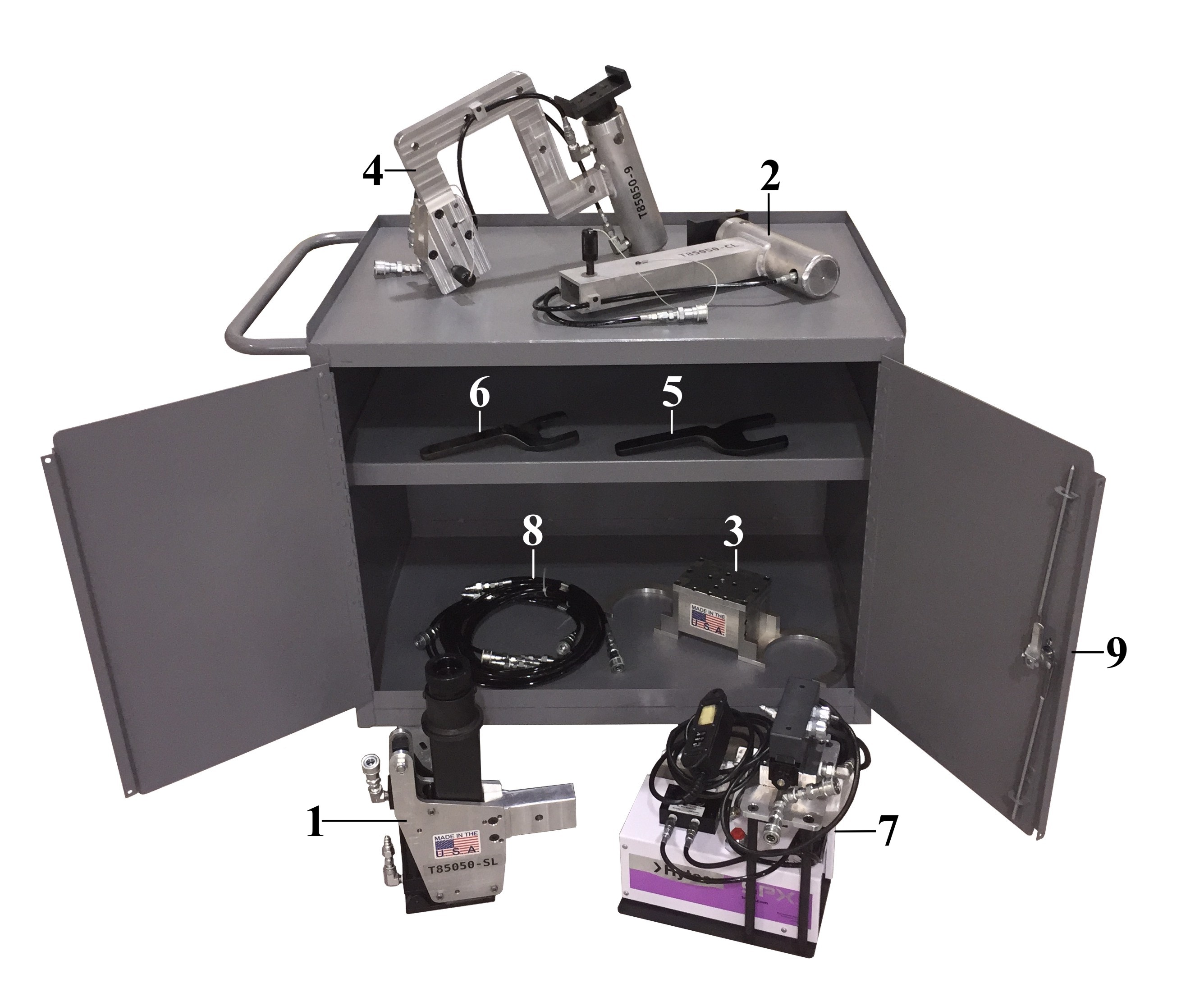

This kit consists of tooling necessary to lift and lower both the main bearing caps as well as the hydraulic main bearing stud tensioner cylinders on GEVO engines. The kit consists of the following:
| 1 | T85050SL | Main Hydraulic Jack |

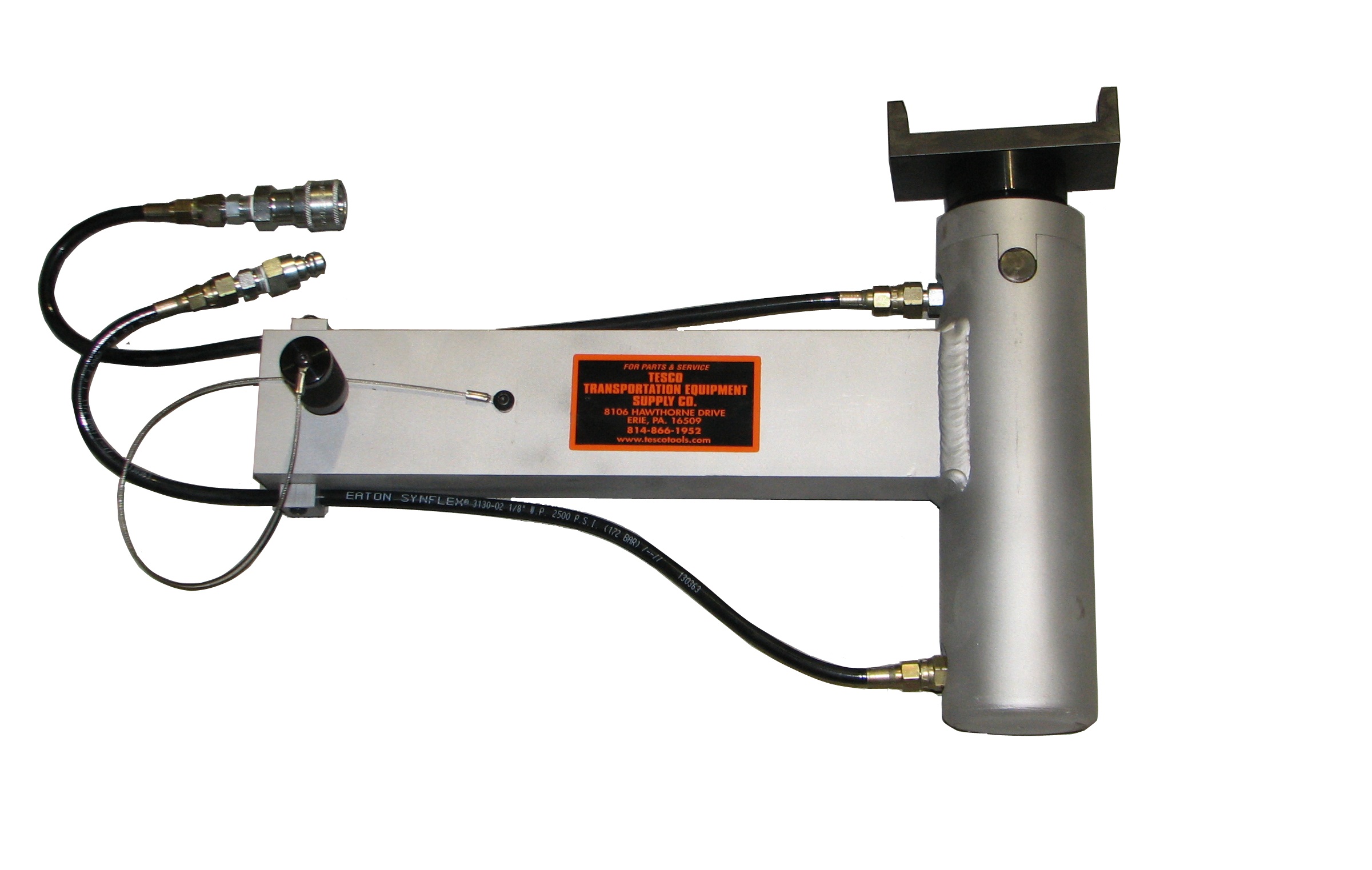

| 2 | T85050CL | Auxiliary Jack / Cap Lifter |

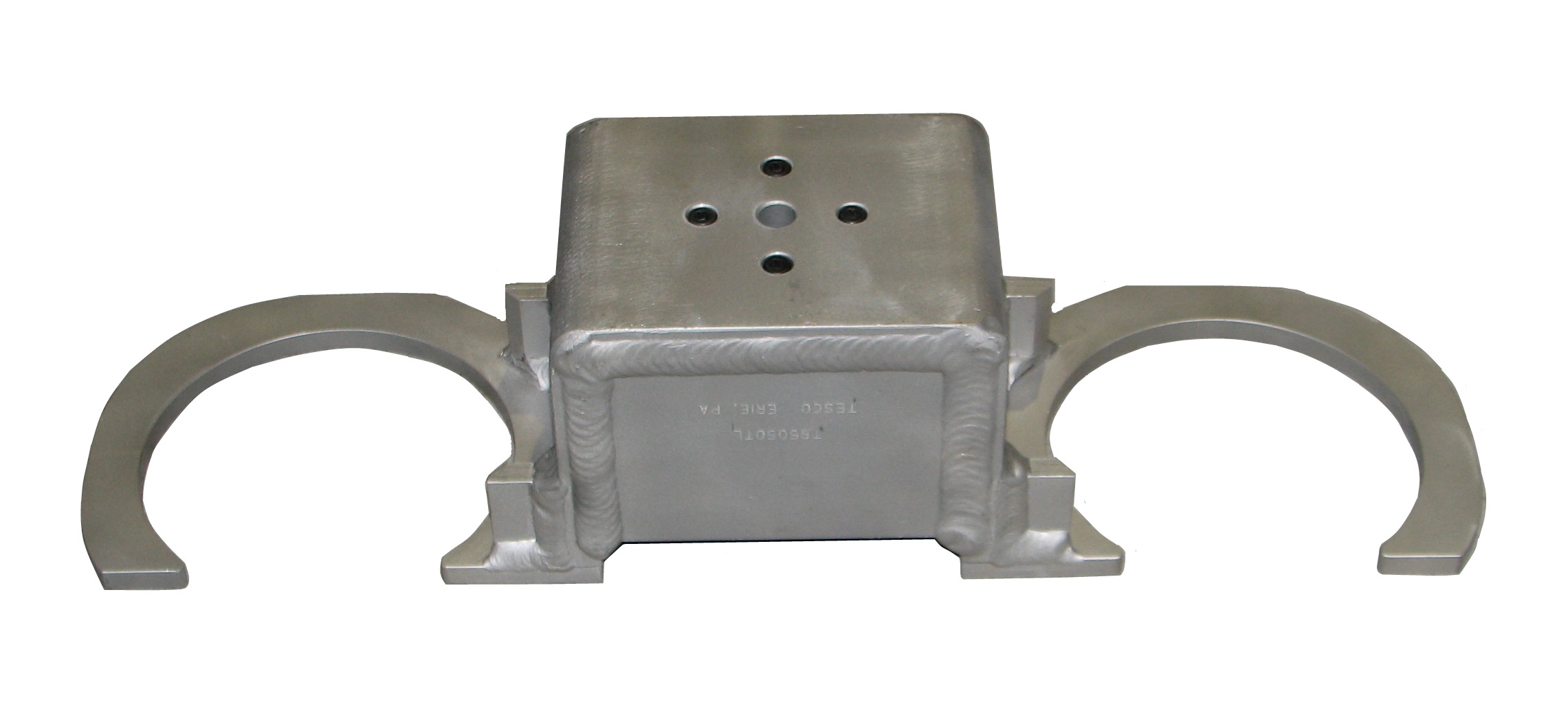

| 3 | T85050TL | Tensioner Lifting Bracket |

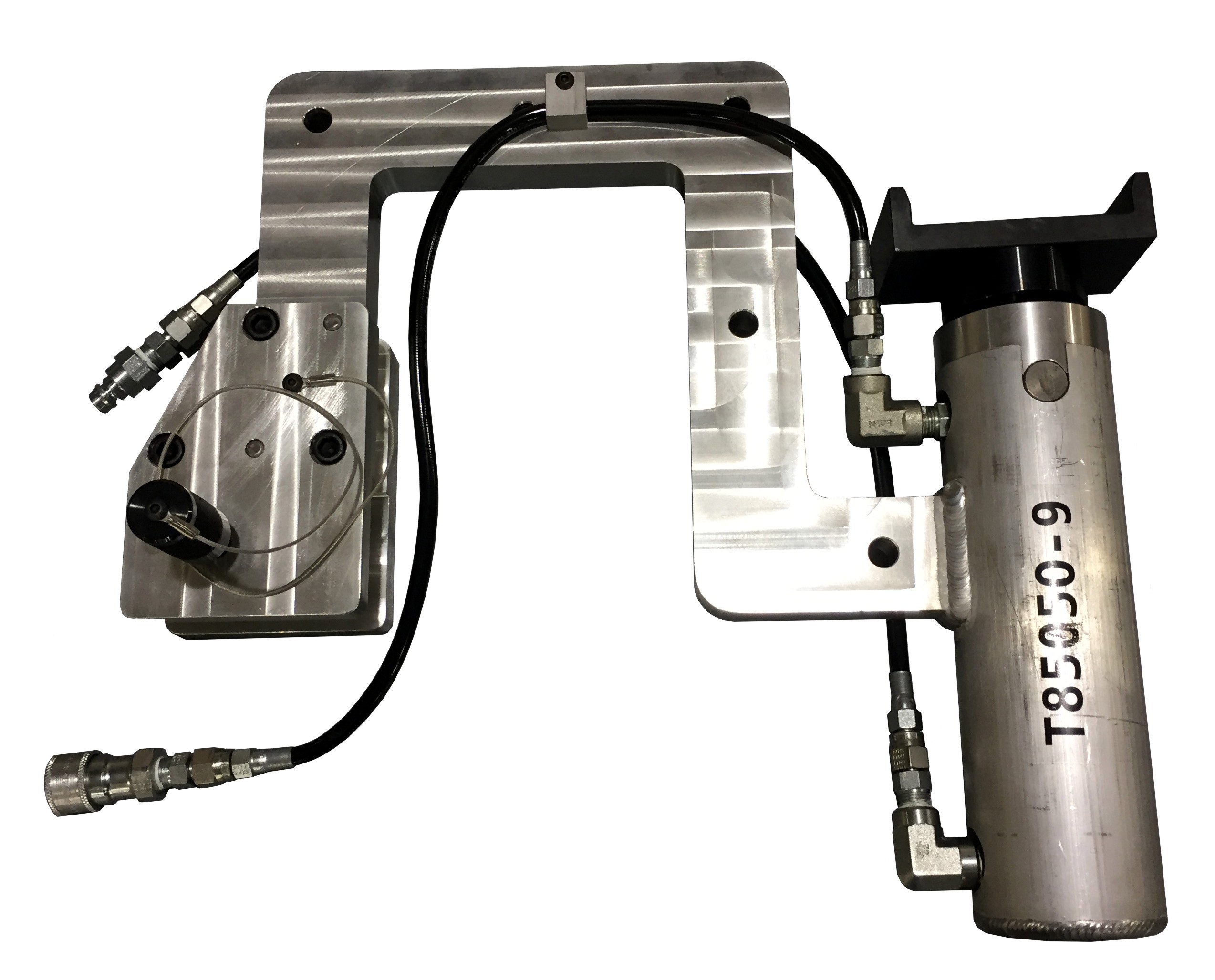

| 4 | T85050-9 | Arm for #7 and #9 Bearing |

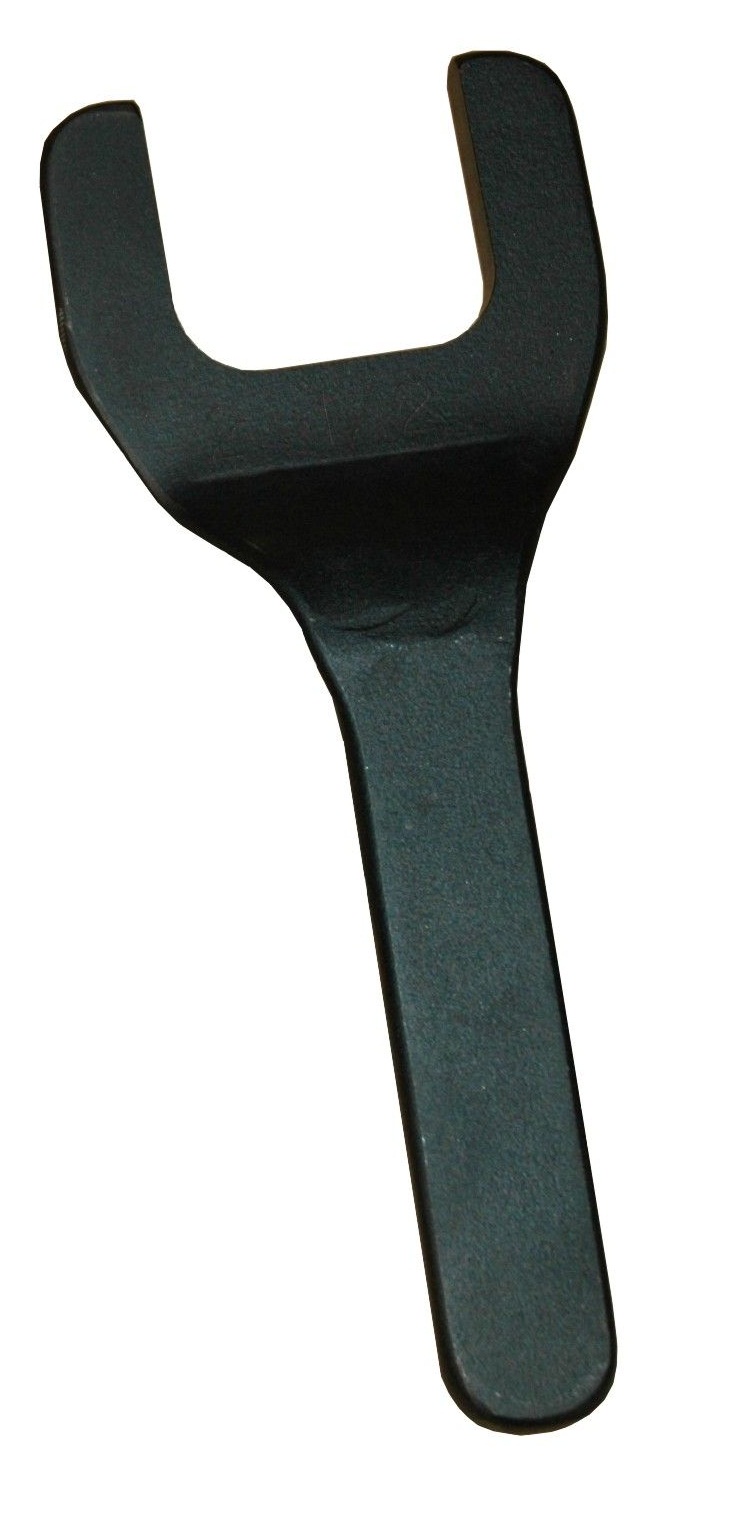

| 5 | T85050W | Main Bearing Tensioner Wrench |
| 6 | T80830 | Main Bearing Tut Wrench |
| 7 | T85051PA | Pump Assembly |
| 8 | T85051HA | Hose Assembly (4 Included) |
| 9 | T85051SB | Storage Box |
