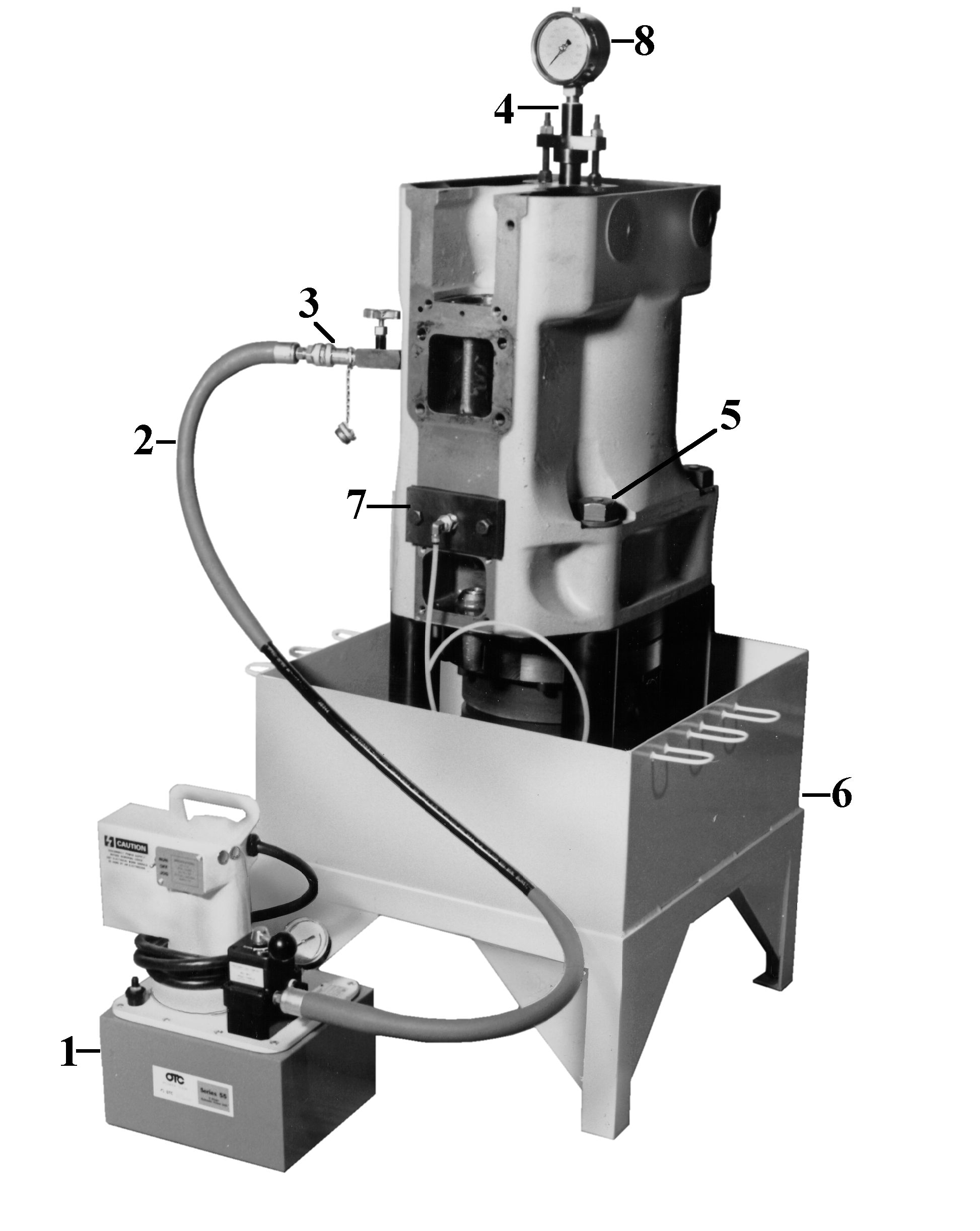

5000 PSI Hydraulic FDL Cylinder Leak Test Fixture
Part Number:
T17380
Product Description
This fixture is supplied with all the hardware, hydraulic pump and necessary accessories to completely test rebuilt cylinders at 5000 PSI. Follow the GE instructions for exact details of the test.
Please specify T17380 for a 115 Volt Test Fixture, or T17480 for a 230 Volt Fixture.
| 1 | T14320 | Motor Driven Pump 115 Volt |
| T14330 | Motor Driven Pump 230 Volt | |
| 2 | T10200 | Hose |
| 3 | T17590 | Valve and Plug Adapter |
| 4 | T17580 | Gauge and Dummy Injector Assembly |
| 5 | T50230 | Hold Down Bolt and Washer (4 required) |
| T17660 | "O" Ring for Piston (6 required) | |
| T19350 | 45 degree Test Valve (2 supplied) | |
| T19360 | 15 degree Test Valve (2 supplied) | |
| T21730 | "O" Ring for test valves (12 supplied) | |
| 6 | T17490 | Stand |
| 7 | T17500 | Test Fixture |
| 8 | T17700 | Gage only 0-10,000 PSI |
| 9 | T50240 | Set of Blanking Plates - 1 water inlet and 1 water outlet |
