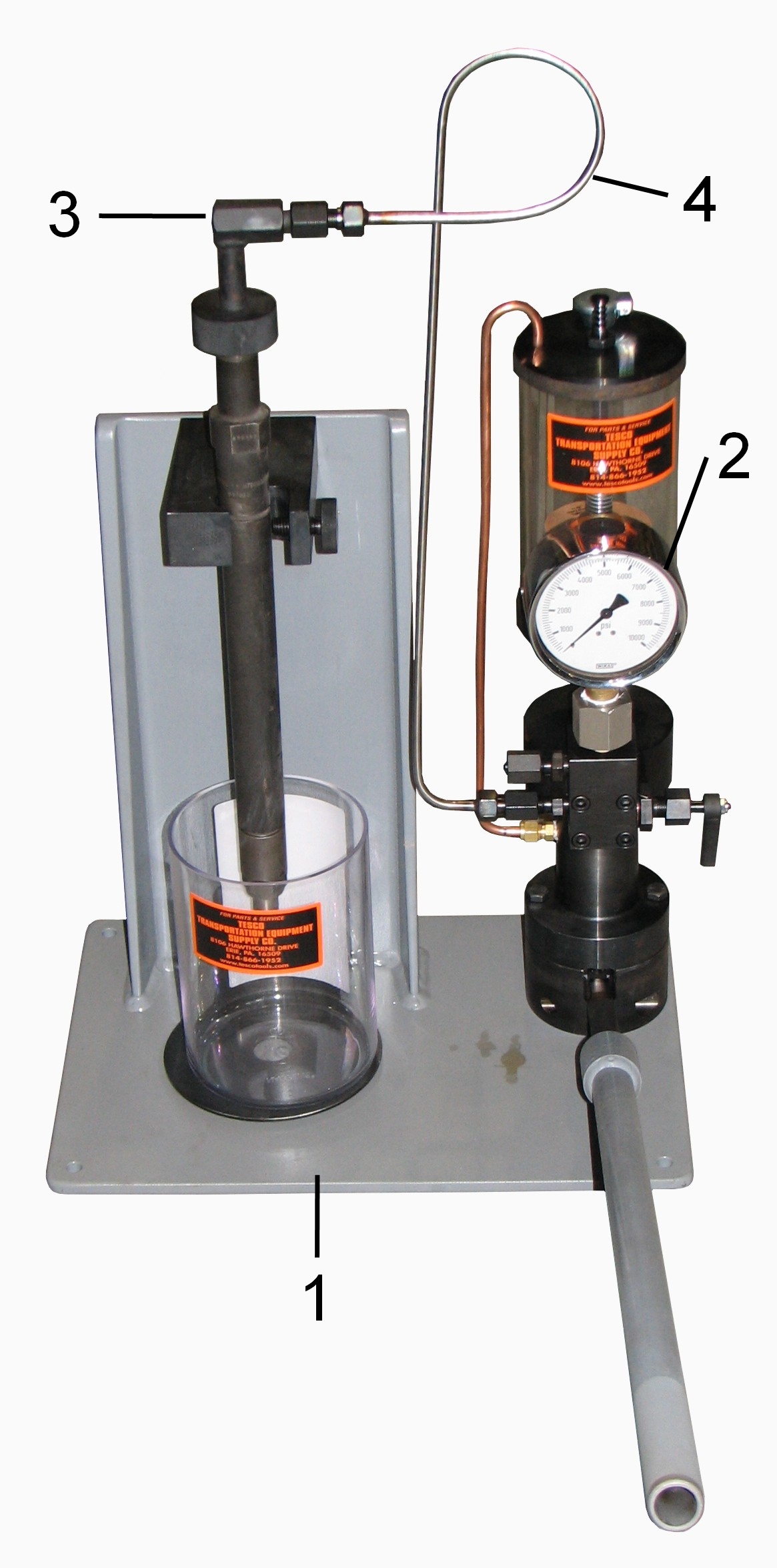

FDL Fuel Nozzle Test Stand

The nozzle test stand is used to check nozzle pop pressures, spray patterns and dribble rates. The tester has an intensifier which allows gradual pressure elevation to allow for close pop observation. The speed connectors utilize "O" rings that require only hand tightening and loosening of the connection. The proceedure is covered the the GE Maintenance Instructions.
