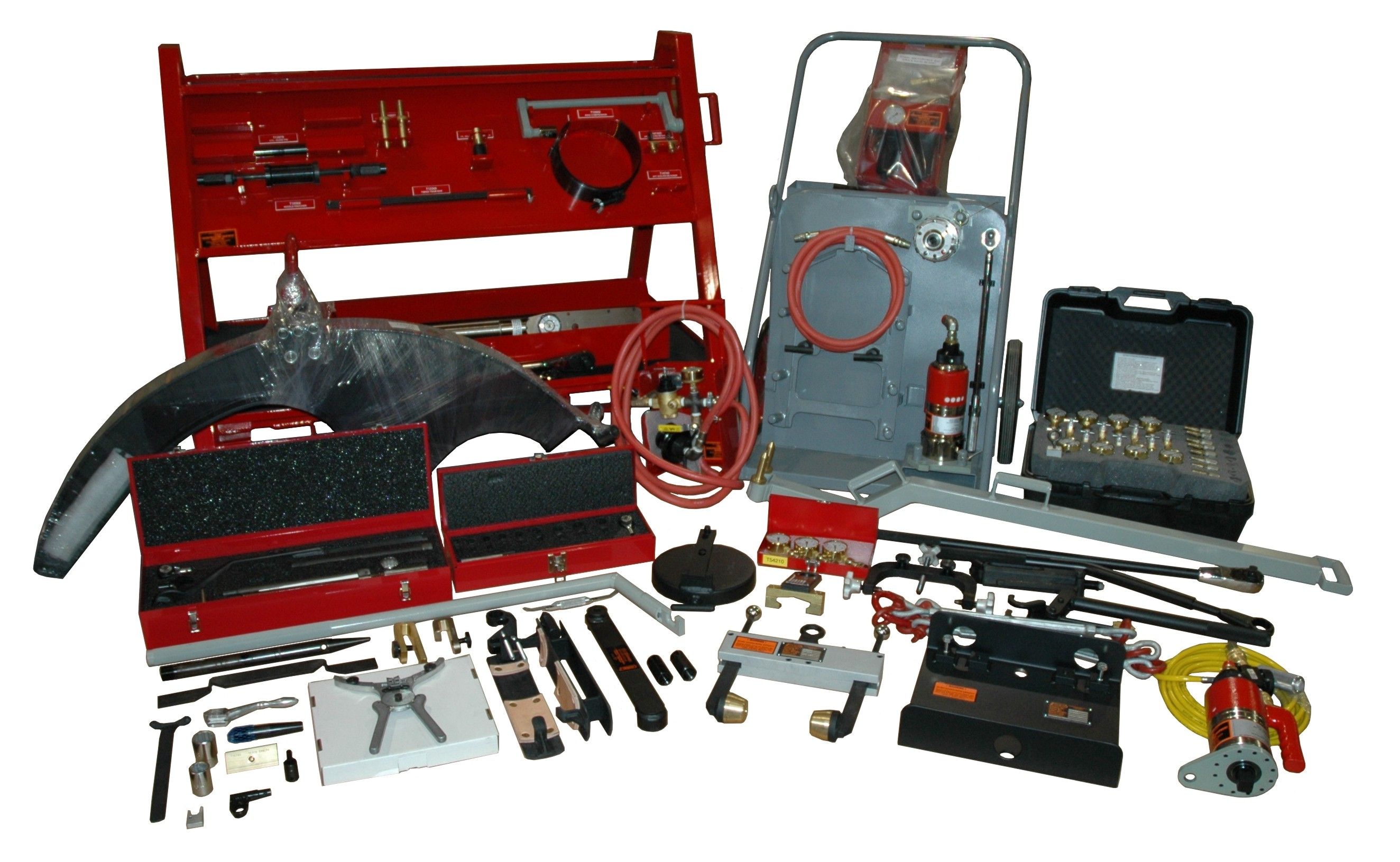

Tool Cart for GE FDL Engines with Mechanical Fuel Systems
Part Number:
T24302
Product Description
This is a complete tool cart with all the tools required for power assembly and turbocharger removal/installation for an engine equipped with a mechanical fuel system. The cart is equipped with 4 wheels (2 with brakes) and hand grips for steering, as well as pick up positions for forklift trucks. A fixture is attached to hook directly to shop air that will provide three additional air outlets. A complete Tool Cart listing is shown below. Combination Mechanical and EFI Tool Carts are also available.
| T10402 | Rocker Arm Depressor | T22303 | Compression Tester Set |
| T10892 | Piston Ring Compressor | T22520 | 250 lb. Ft. Torque Wrench |
| T10900 | Piston Support Bar | T23221 | Piston Retainer |
| T10980 | Piston Ring Groove Scrapper | T23500 | Turbo Bolt Torque Adapter |
| T10993 | Ring Expander | T52060 | Feeler Gage |
| T11220 | Art Rod Guide Pin | T52051 | Cam Shaft Roller Lifter |
| T18561 | Nozzle Knocker | ||
| T12300 | Timing Tram Bar | T18593 | Piston & Rod Lifter |
| T12962 | Governor Gap Gage | T18660 | 1 1/8" Socket 3/4" drive |
| T13221 | Cylinder Insert Wrench | T19165 | Turbocharger Lifter |
| T13670 | (2) Cylinder Installation Guide Pins | T50301 | Tool Cart |
| T14062 | Piston Retainer | T19510 | Piston Protector |
| T14582 | Art Rod Pin Bolt Wrench | T20702 | Universal Rack Setting Gage |
| T14740 | Art Rod Pin Retainer | T22040 | Barring Over Tool |
| T14740D | Art Rod Pin Retainer (Double Pin) | T24101 | Pneumatic Torque Kit |
| T14921 | (2) Conn. Rod Bearing Retainer | T15804 | Governor Tail Rod Jack |
| T15110 | Socket 15/16" | T54552 | Cylinder Lifter (Shipped on sep. skid) |
| T15171 | Adapter | T54330 | Master Rod Cap Lifter |
| T15927L | Fuel Line Torque Kit | T54210 | Test Gage Kit |
| T16551 | Master Rod Lifter | T50370 | Inlet Casing Wrench Adapter |
| T17802 | Box Wrench Torque kit | T18231 | Conn Rod Cap Removing Wrench |
| T18230 | 600 lb. Ft. Torque Wrench | T23502 | Turbo Mounting Bolt Wrench |
|
T18411 |
Piston Pin Bolt Wrench | T51750 | Cooling System Test Kit |
| T51433 | Exhaust Manifold Torque Adapter |
