Hydraulic Traction Motor Pinion Puller Set
Part Number:
T50851
Product Description
The Traction Motor Pinion Puller Set has been redesigned to provide all high pressure fittings rated at 60,000 PSI. The pump provided is rated at 40,000 PSI.
WARNING: This kit is utilized to remove traction motor pinions hydraulically. Pinion retainer plates which bolt into the end of the armature shaft should be utilized when operating this equipment.
NOTE: Tubing as illustrated with 2 - T50730 Tubing Sleeves and 2 - T50870 Gland Nuts is catalog # T50920. *Should you require Pinion Retainer Plates, TESCO will build them to order.
T50890 Retainer Plate for GE 752 armature Shaft with threaded end.
T50900 Retainer Plate for GE 752 Armature Shaft with two threaded 1.00"- 8 holes on end of shaft.
T50910 Retainer Plate for GE 752 Armature Shaft with one threaded 1.00" - 8 hole on end of shaft.

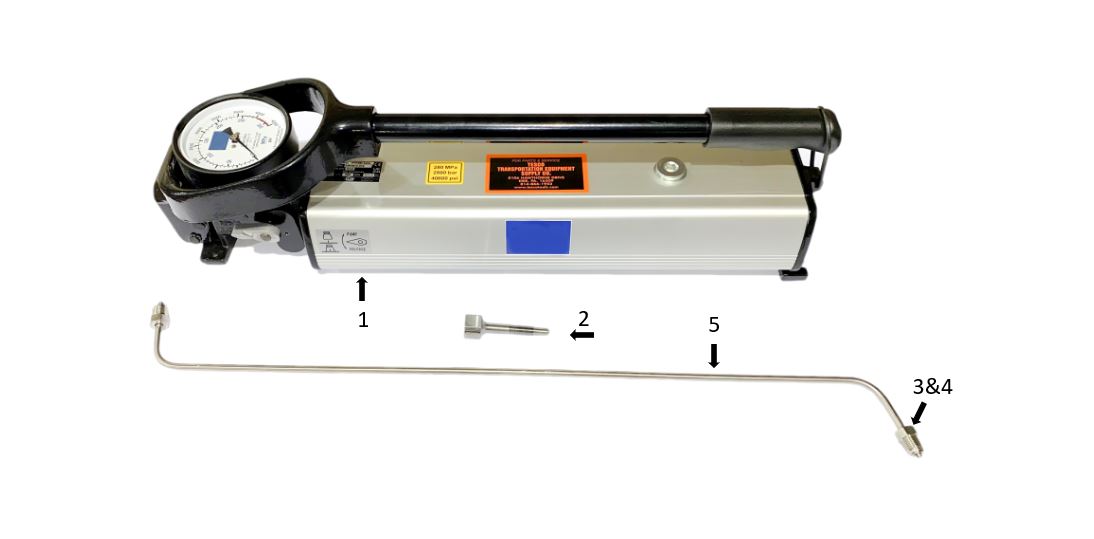

| 1 | T50861 | Hydraulic Pump (40,000 PSI) |
| 2 | T50880 | Armature Shaft Pressure Adapter, 9/16"-18 female x 3/8"-24 male |
| 3 |
T50730 |
(2) Tubing Sleeves |
| 4 |
T50870 |
(2) Gland Nuts |
| 5 |
T50720 |
Tubing Only |
| 3,4,5 |
T50920 |
Tubing Assembly (2 T50730 Sleeves and 2 T50870 Nuts) |

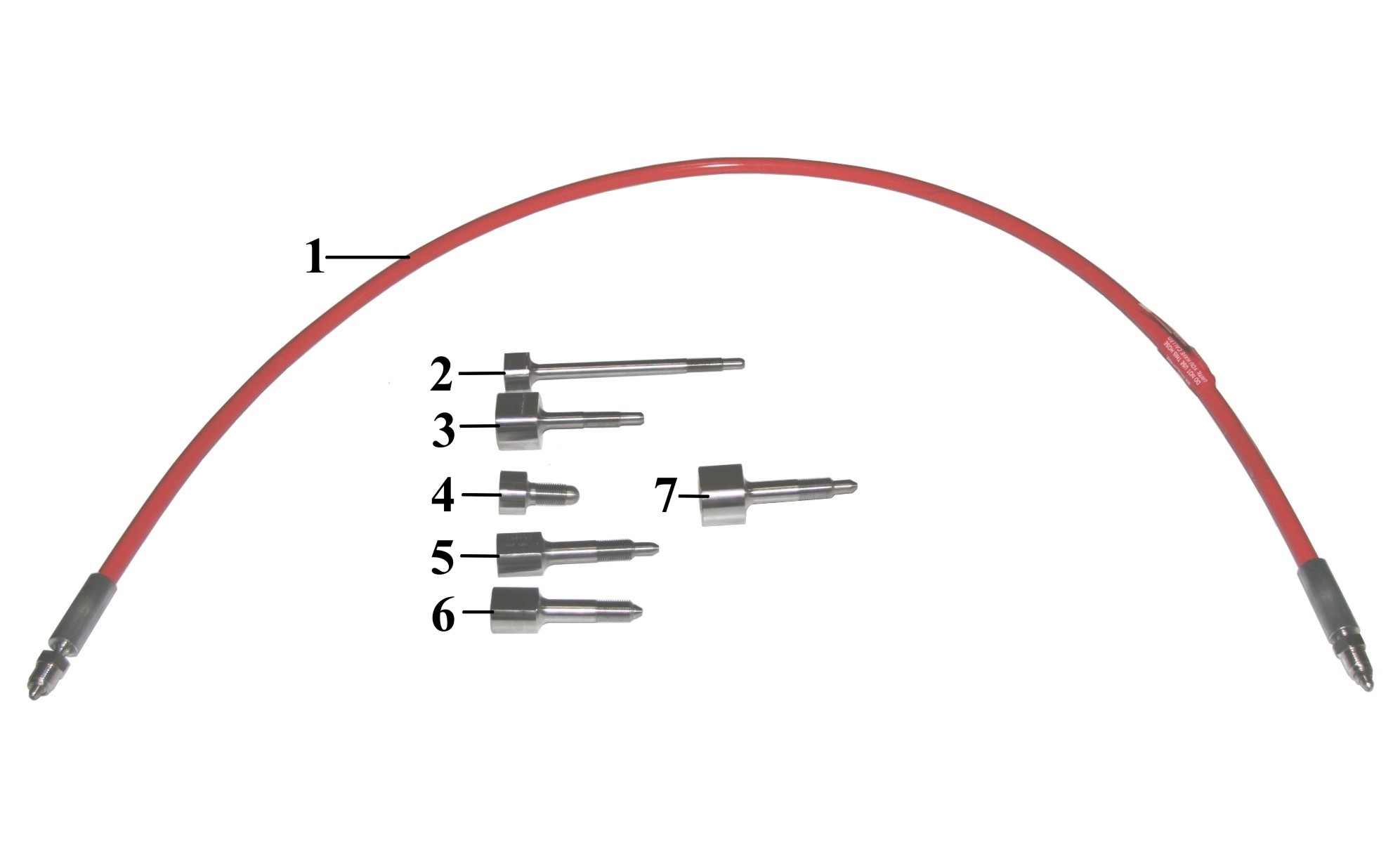

Other armature shaft pressure adapter available:
| 1 | T50850-FHA Flexible Hose Assembly |
| 2 | T50880-6 9/16" female x 3/8"-24 male x 6" long |
| 3 | T50880 9/16" female x 3/8"-24 male |
| 4 | T66610 MAC 90 Adapter 9/16"-18 female x 1/4" -19 BSP male |
| T66610H Same as above w/hex base (not shown) | |
| 5 | T54650 9/16"-18 female x 1/2"-20 male |
| 6 | T54451 3/4"-16 female x 3/8"-24 male |
| 7 | T54651 3/4"-16 female x 1/2"-20 male |
