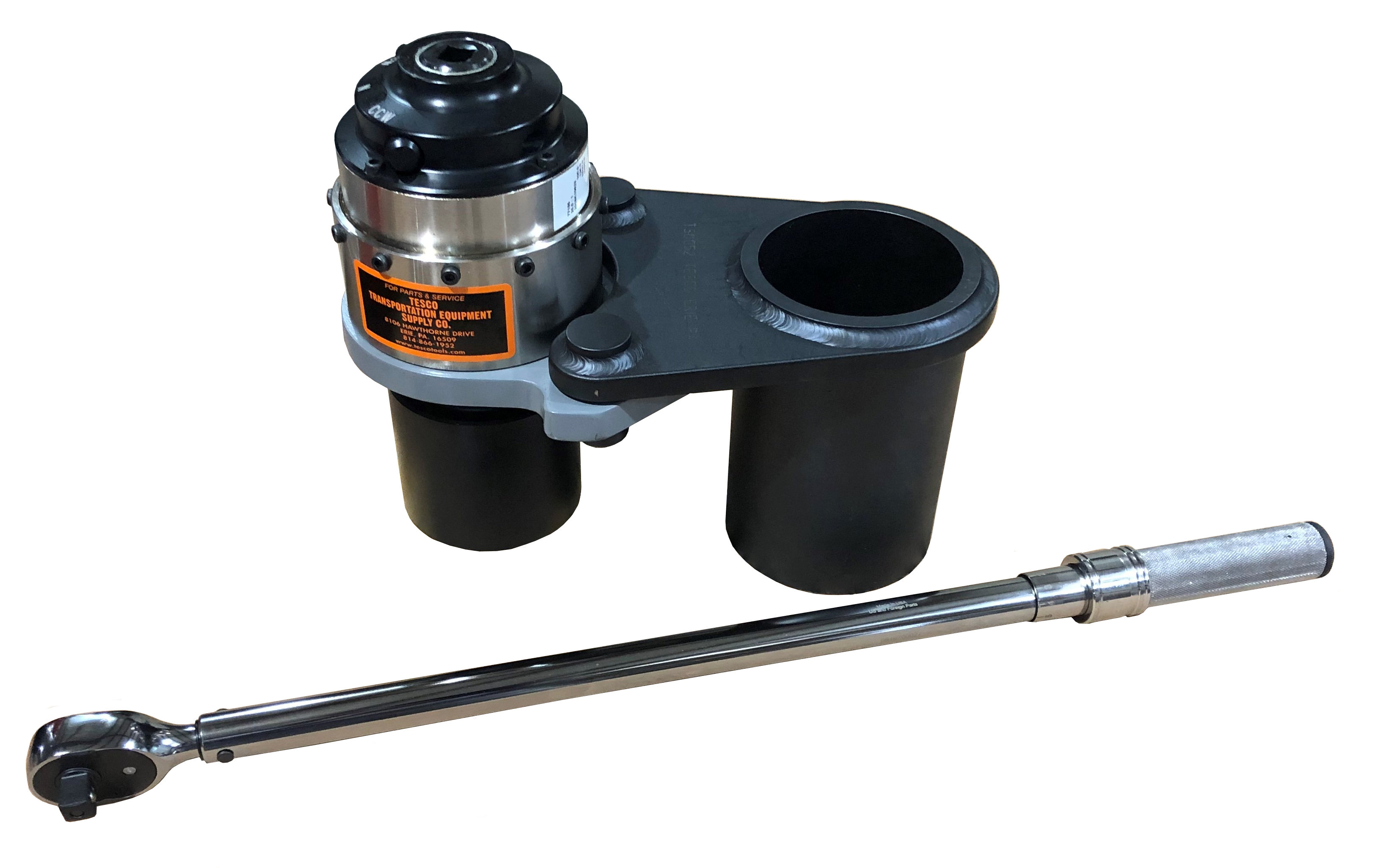

Manual Crab Nut Torque Kit

This kit features a 25:1 torque verifier with a 1 1/2" square drive rated at 3,200 lb.ft. torque. Accuracy is certified to +/- 3%, and the verifier is equipped with an anti-wrap up feature that traps all input motion of the torque wrench. 2,400 lb.ft. crab nut torque is accomplished by inputting 96 lb.ft. of torque with the ratcheting 1/2" drive torque wrench. The new single piece reaction arm is placed on the adjacent crab nut to react the torque applied by the verifier.



1	T22520	50-250 lb.ft. 1/2" Drive Torque Wrench
2	T23601	Torque Verifier (1 1/2" Drive)
3	T50053	Reaction Arm
4	T50063	Socket (includes T13020 and T13030)

Comparable to EMD 9551713
