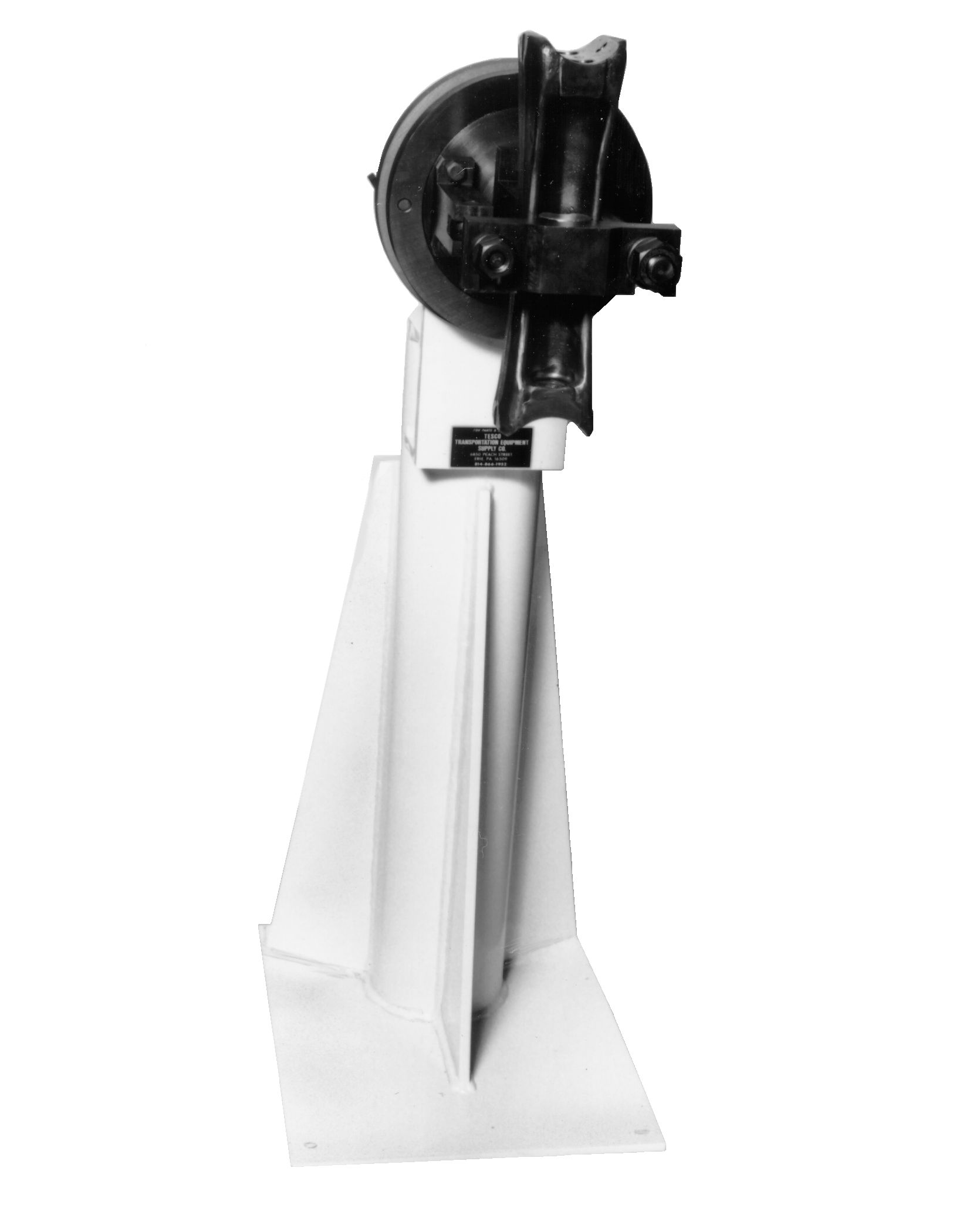

Connecting Rod Service Fixture for GE FDL Engines

This tool facilitates the proper holding and rotation of connecting rods made necessary for taking bearing crush readings and piston installation. The rod is held by two brass jaws and can be rotated to various positions. The spindle of the fixture is equipped with a spring loaded plunger and bushing assembly that locates the various service positions and two cam operated clamps that lock the fixture in the service position.
